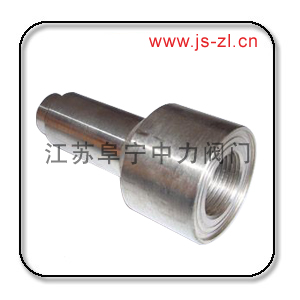

一、直型连接头产品介绍：
1.直形连接头(管嘴)用于管路的温度计,热电阻,热电偶的连接
2.具有密封性能好,外形美观,结构紧凑,安装方便等优点
二、直型连接头主要参数：
1.公称压力：1.0-32MPa
2.适用温度：-70℃~+750℃
3.制造材料：20#,H162 1Cr18Ni9Ti,316L等
| d |
D0 |
d0 |
D |
L |
I1 |
I2 |
代号 Code No |
| M16×1.5 |
14 |
7 |
36 |
80 |
27 |
8 |
ZL11-1-M16×1.5 |
| M20×1.5 |
14 |
7 |
40 |
80 |
27 |
8 |
ZL11-1-M20×1.5 |
| M27×2 |
22 |
18 |
47 |
60 |
32 |
8 |
ZL11-1-M27×2-1 |
| M27×2 |
22 |
18 |
47 |
80 |
32 |
8 |
ZL11-1-M27×2-2 |
| M27×2 |
22 |
18 |
47 |
120 |
32 |
8 |
ZL11-1-M27×2-3 |
| M27×2 |
22 |
18 |
47 |
140 |
34 |
8 |
ZL11-1-M27×2-4 |
| M33×2 |
30 |
24 |
55 |
60 |
34 |
8 |
ZL11-1-M33×2-1 |
| M33×2 |
30 |
24 |
55 |
80 |
34 |
8 |
ZL11-1-M33×2-2 |
| M33×2 |
30 |
24 |
55 |
120 |
34 |
8 |
ZL11-1-M33×2-3 |
| M33×2 |
30 |
24 |
55 |
140 |
34 |
8 |
ZL11-1-M33×2-4 |
| G1/2″ |
21 |
16 |
39 |
60 |
35 |
8 |
ZL11-1-G1/2″-1 |
| G1/2″ |
21 |
16 |
39 |
80 |
35 |
8 |
ZL11-1-G1/2″-2 |
| G1/2″ |
21 |
16 |
39 |
120 |
35 |
8 |
ZL11-1-G1/2″-3 |
| G3/4″ |
25 |
20 |
47 |
60 |
41 |
8 |
ZL11-1-G3/4″-1 |
| G3/4″ |
25 |
20 |
47 |
70 |
41 |
8 |
ZL11-1-G3/4″-2 |
| G3/4″ |
25 |
20 |
47 |
80 |
41 |
8 |
ZL11-1-G3/4″-3 |
| G3/4″ |
25 |
20 |
47 |
120 |
41 |
8 |
ZL11-1-G3/4″-4 |
| G1″ |
35 |
25 |
55 |
60 |
42 |
8 |
ZL11-1-G1″-1 |
| G1″ |
35 |
25 |
55 |
70 |
42 |
8 |
ZL11-1-G1″-2 |
| G1″ |
35 |
25 |
55 |
80 |
42 |
8 |
ZL11-1-G1″-3 |
| G1″ |
35 |
25 |
55 |
120 |
42 |
8 |
ZL11-1-G1″-4 |
| G1 1/2″ |
40 |
30 |
70 |
80 |
45 |
8 |
ZL11-1-G1 1/2″-1 |
| G1 1/2″ |
40 |
30 |
70 |
120 |
45 |
8 |
ZL11-1-G1 1/2″-2 |
|
